DSPAUT B3
Uncompromising Field Portability
The DSPAUT B3 is an ultra-lightweight Portable Phased Array Ultrasonic Testing (PAUT) system specifically engineered for maximum mobility without sacrificing inspection quality. Weighing in at just 1.4kg, it is the ideal choice for scaffolding, rope access, and inspections in confined spaces where safety and portability are paramount.

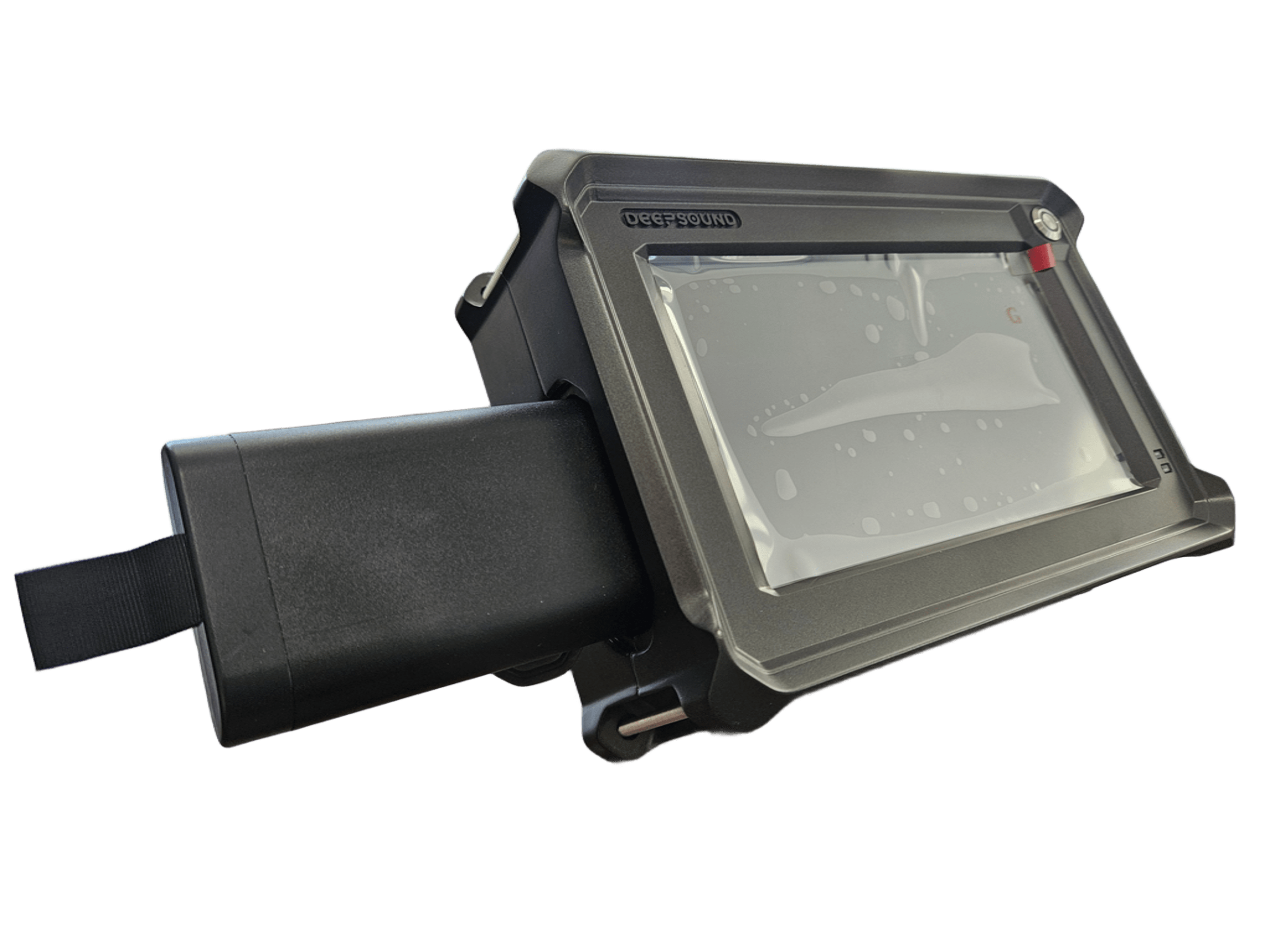

Incredible Portability: Less Than 1.4kg
When every gram counts, the DSPAUT B3 delivers. Weighing in at just 1.4kg with the battery (and under 1kg for the body), it is one of the lightest high-performance PAUT units in the world. Ideal for operators executing rope-access inspections or climbing scaffolding structures.

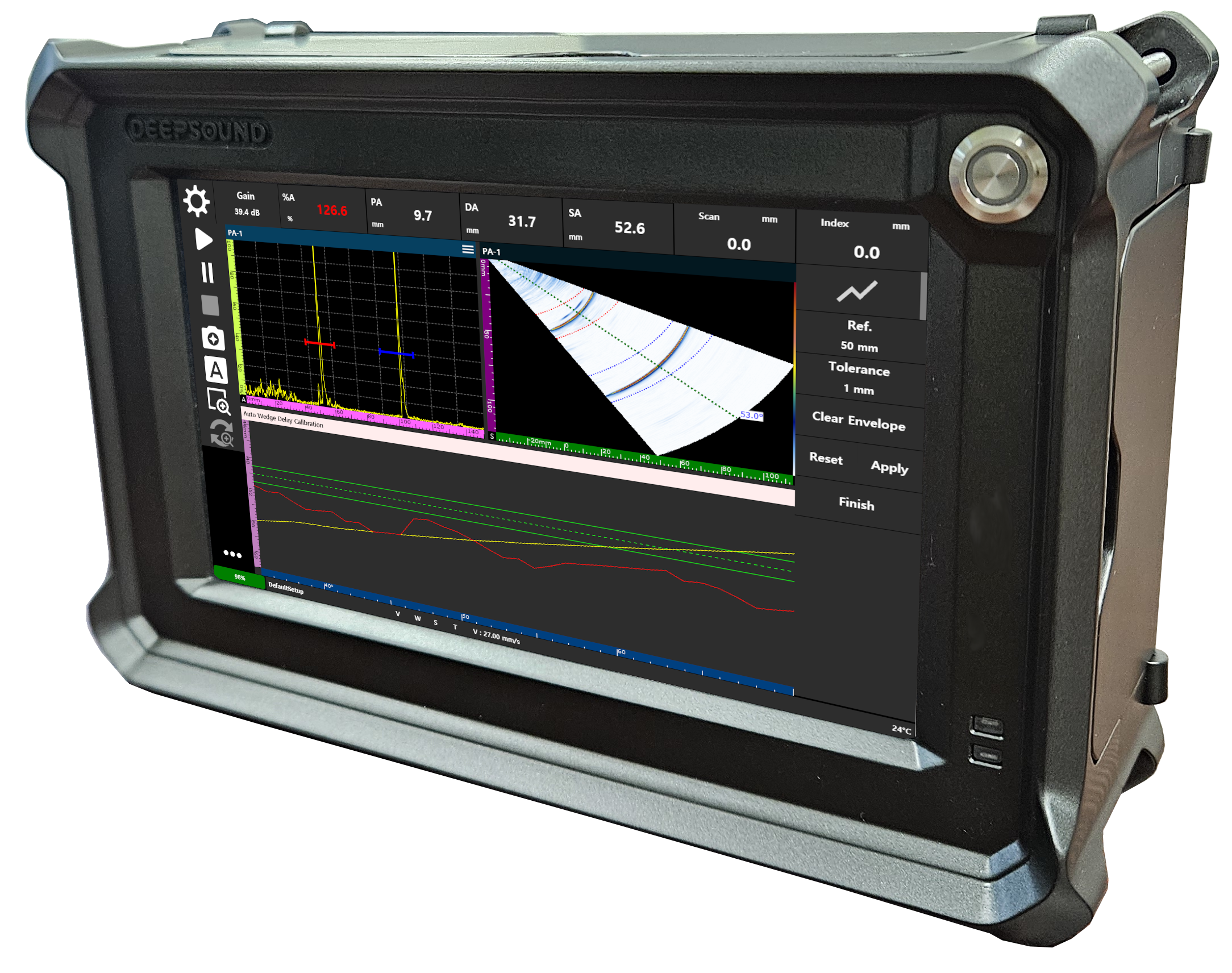

- ✔ True Grab-and-Go Design: Compact form factor allows for stable one-handed operation in challenging environments.
- ✔ 7" Wide Touchscreen: Highly responsive capacitive touchscreen (1024×600) for effortless navigation.
- ✔ Fast Swap Battery: Quick-detachable smart battery system ensures up to 4 hours of continuous inspection.
Precision Inspection & Advanced Visualization
Despite its compact design, the B3 utilizes advanced beam focusing technology to distinguish between complex micro-defects with clarity far surpassing standard NDT gear. It is equipped with a real-time data acquisition engine matching the flagship P5.

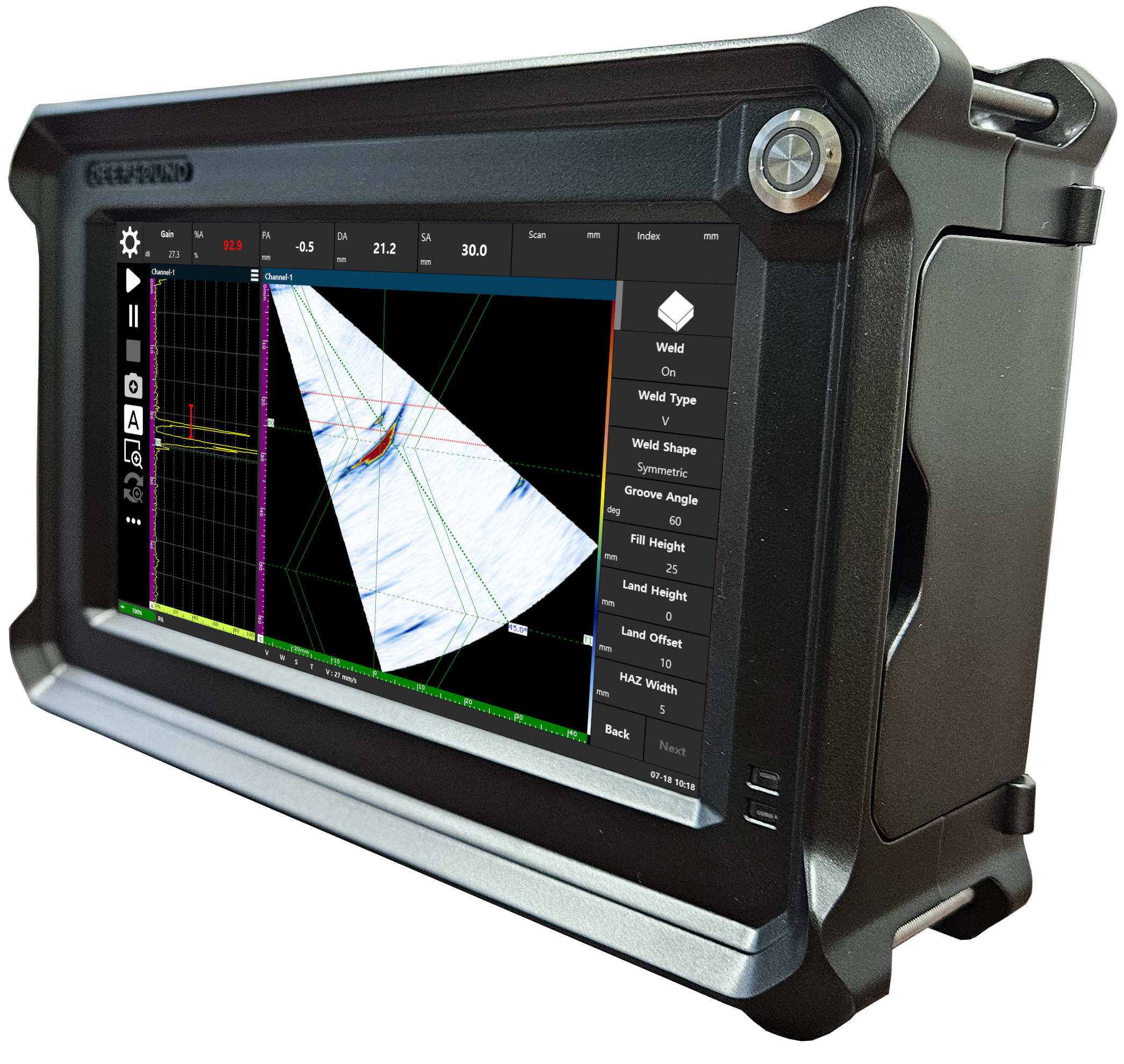

- ✔ Weld Visualization Mastery: Simulate and visualize actual weld structures (V, Double V) and Heat Affected Zones (HAZ) directly within the software.
- ✔ Flexible Group Management: Support for up to 4 independent channel groups, allowing combined PAUT + TOFD inspections.
- ✔ High-Speed Processing: 30kHz PRF support ensures instantaneous operation and fast data collection.
- ✔ Integrated Calibration: Fast calibration for Velocity, Wedge Delay, TCG, and Encoder to guarantee accuracy on-site.
100% P5 Software Engine Matching DSPAUT B3 Interface & Ports Map
Designed for immediate field diagnostic capability, the B3 layout incorporates dedicated sensor ports on the top and standard communication interfaces behind a protective rear hatch.

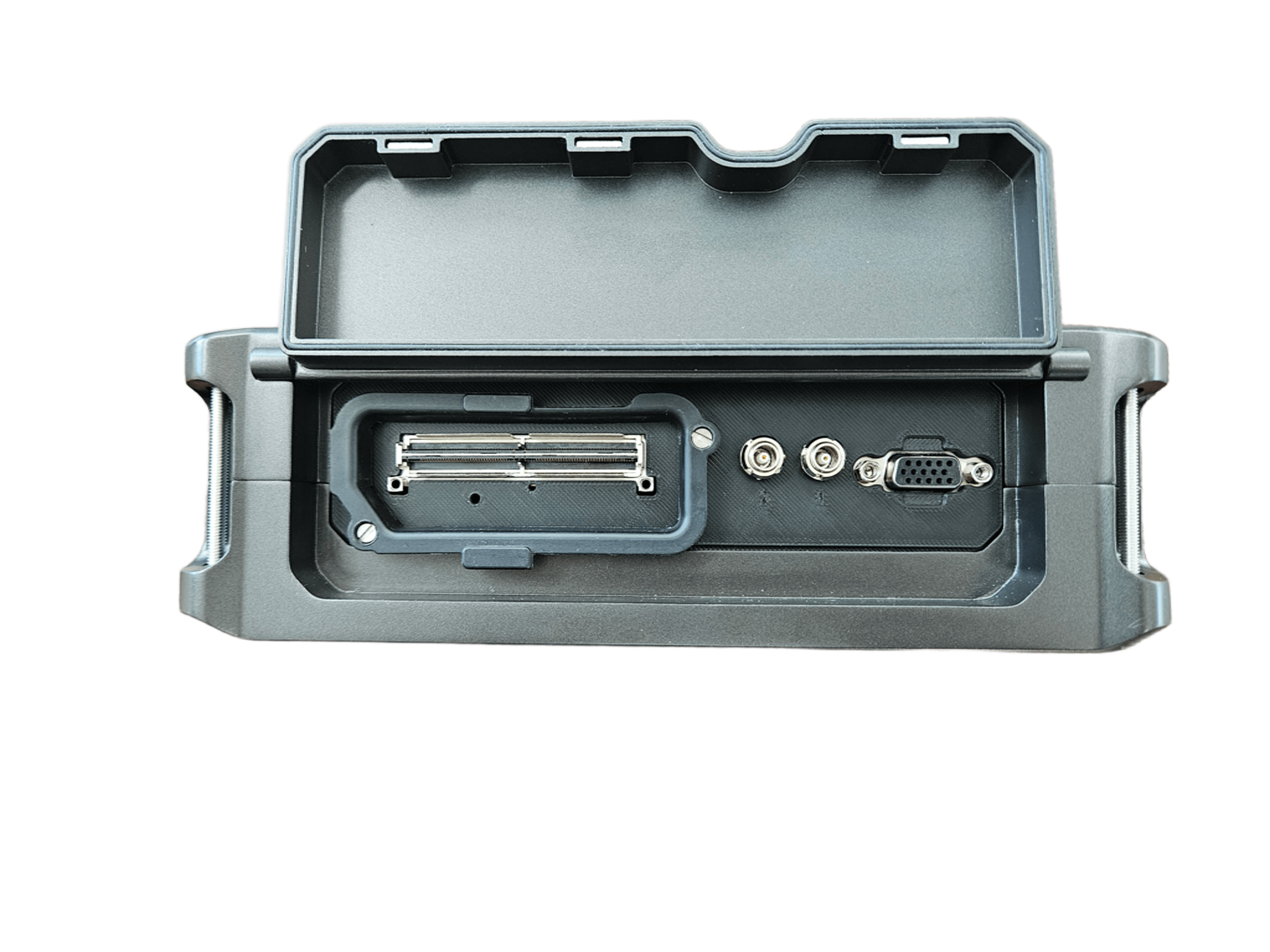

Top Connector Panel (Probe & Encoder)

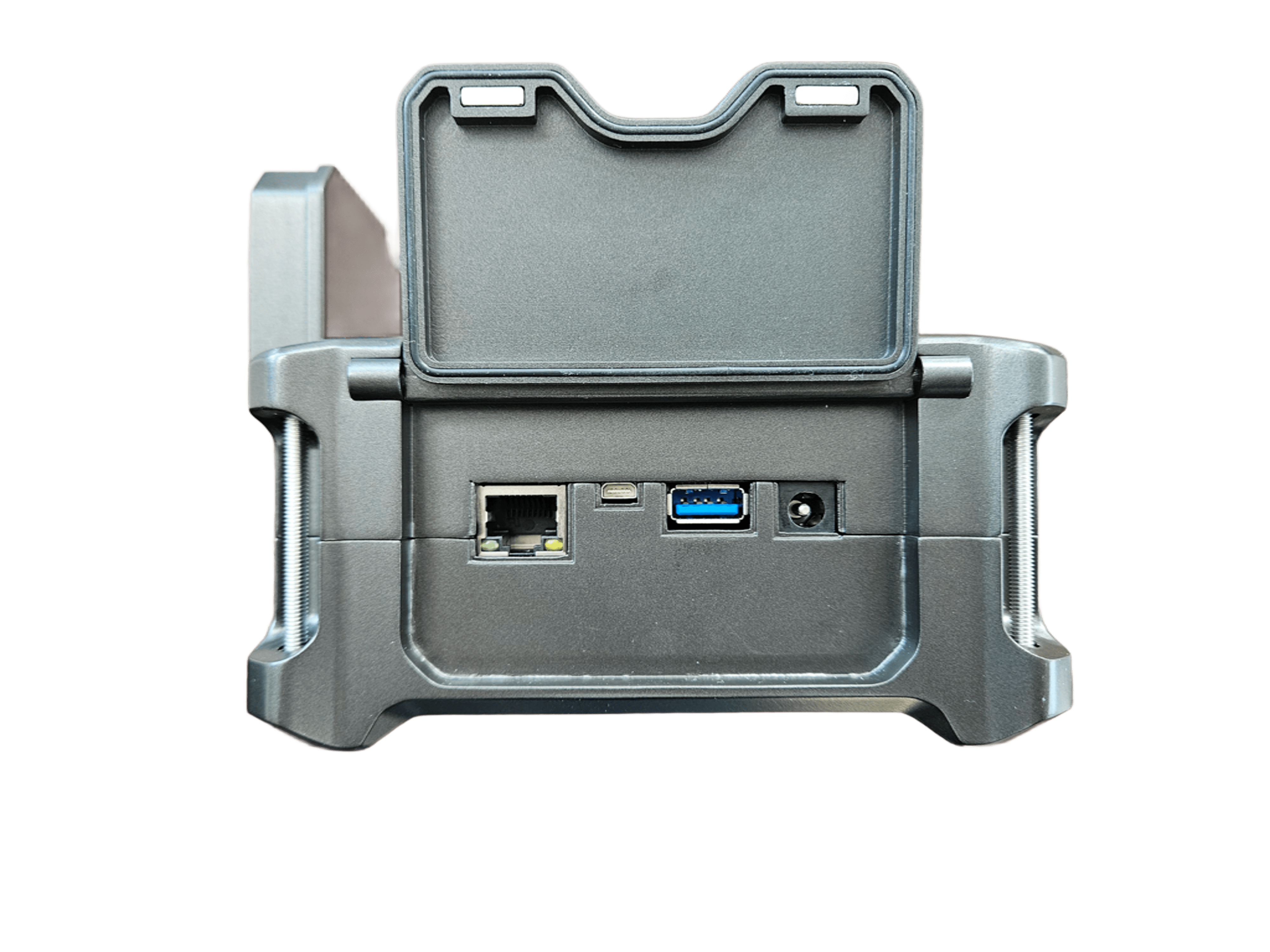

Rear Panel Connections (I/O & Power)
Technical Specifications
| Specification Category | DSPAUT B3 Values |
|---|---|
| General & Mechanical | |
| Weight | 1.4 kg (Including Battery), < 1.0 kg (Body Only) |
| Display | 7" Wide Capacitive Touchscreen (1024 x 600) |
| Battery Life | Up to 4 hours of continuous operation (quick-detachable) |
| Acoustic & Configuration | |
| PAUT Configuration | 16:64PR channels |
| Effective Digitizer | 100 MHz |
| Max PRF | Up to 30 kHz |
| Sample Resolution | 16 bit |
| Scanner Support | Linear, Sectorial, Conventional, TOFD (Up to 4 Independent Groups) |
| Connectivity | |
| I/O Ports | USB 3.0, Micro HDMI, 2-Axis Encoder input |
Request a Quote for DSPAUT B3
Submit your contact information and customized testing configurations, and our technical sales engineers will contact you with a dedicated quote.
