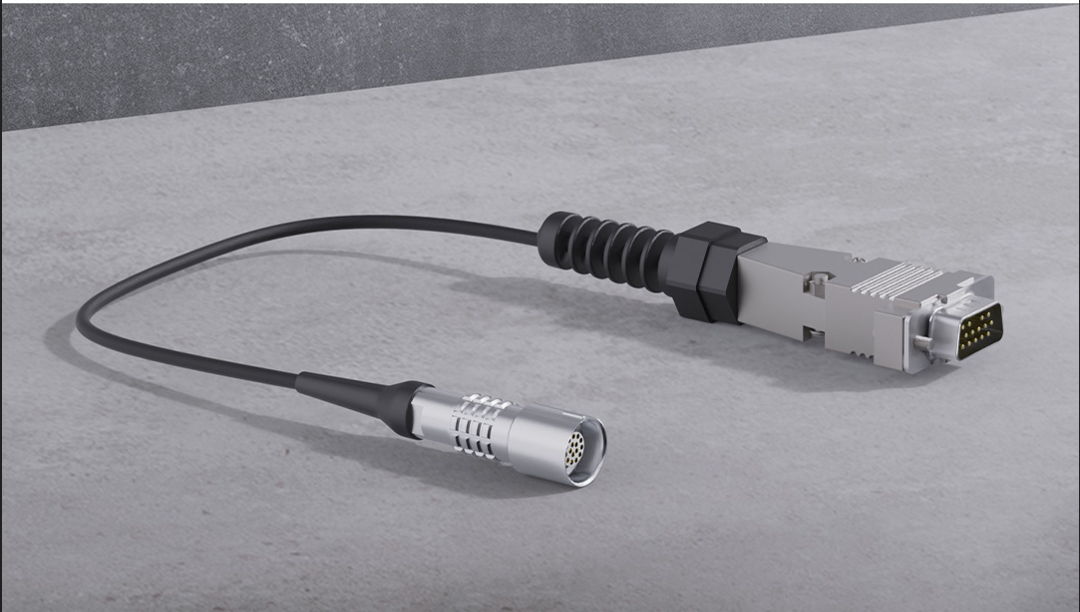

DSPAUT EC
Encoder Converter
Solve your encoder connection issues with a single cost-effective converter. Developed by SEONGSANLAB, the DSPAUT EC bridges standard scanner encoders to your DSPAUT instrumentation, allowing coordinate sync without purchasing expensive new encoders.
Durable Aluminum Body & Easy Integration
The DSPAUT EC Converter features a highly reliable D-SUB screw lock for standard scanner connectors, matched with a LEMO type port for standard DSPAUT instrument input. It delivers precise coordinate matching under active scanning configurations.
- ✔ Easy to Carry: Lightweight, pocketable size, easy to store and handle during tall climbing operations.
- ✔ Rugged Aluminum Casing: Unlike plastic adapters, the EC uses a precision metal shell to resist mechanical stress on-site.
- ✔ Universal Selection: Connect Olympus, Sungsan, or other standard scanners directly with a single mapping box.
Broad Scanner Compatibility
Connect standard scanner models like the Olympus HST-Lite, ChainScanner, Cobra, or any third-party crawler scanner system directly. No need to cut wires or splice pins in field trailers. Simply plug and lock the adapter for immediate data collection.

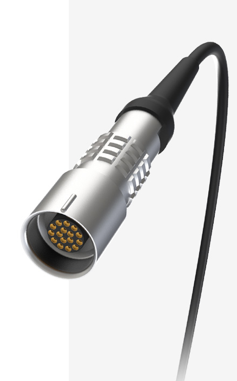

LEMO Connector Type

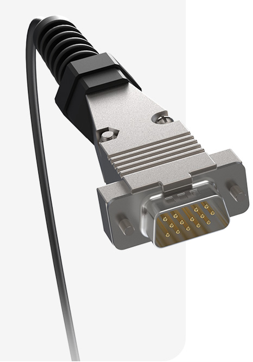

D-SUB Connector Type Technical Specifications
| Specification Category | DSPAUT EC Converter Values |
|---|---|
| Electrical & Signal | |
| Encoder Signal Type | TTL Incremental (Quadrature A / B) |
| Max Pulse Frequency | 500 kHz |
| Mechanical & Environmental | |
| Port (Input) | D-SUB type (From Scanner) |
| Port (Output) | LEMO type (To Instrument) |
| Housing Material | Precision CNC-milled Anodized Aluminum (AL) |
| Cable Length | 300 mm |
| Weight | 100g (Lightweight handheld bridge) |

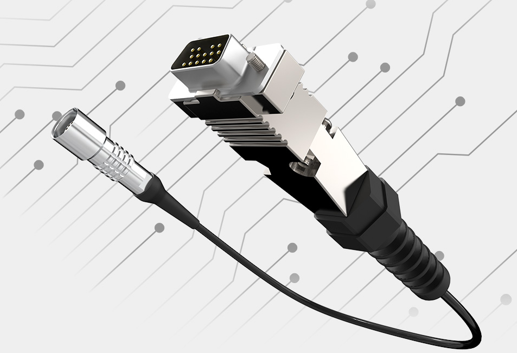

DSPAUT EC Connection Flow & Design Perspective
Visual representation of connection interfaces and the physical layout of the encoder converter.

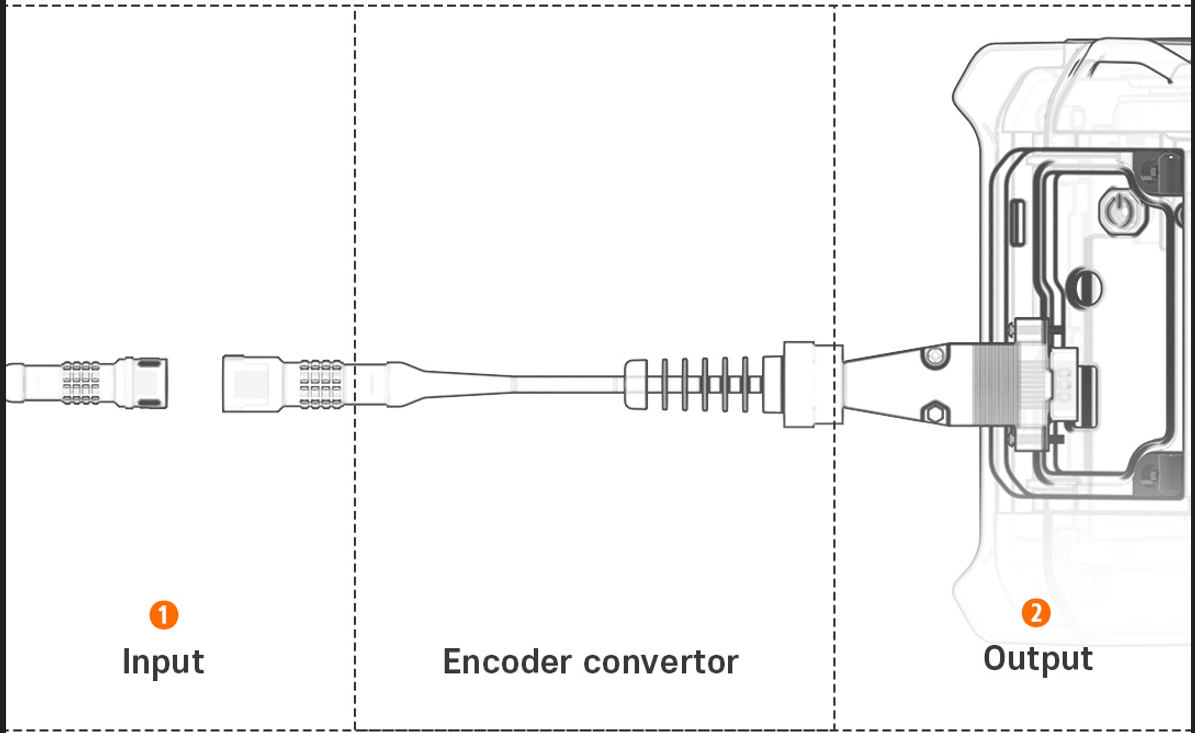

* The connection flow illustrates the interface conversion path from scanner sensors to instruments.
Inquire About DSPAUT EC
Submit your scanner model and required connector pins. Our custom assembly engineering team will assemble the proper converter interface for your site.
