DSPAUT P5
High-Performance PAUT & TOFD
The DSPAUT P5 is a premium portable Phased Array Ultrasonic Testing (PAUT) instrument designed for high-resolution defect detection. Equipped with a glove-friendly 12.1" wide touchscreen, it delivers outstanding operation speed, deep multi-group configuration, and raw TFM/FMC data processing for the most demanding field NDT environments.
Instantaneous Operation & Max 30kHz PRF
Unlike standard NDT equipment, the DSPAUT P5 features an incredibly optimized operating architecture, ensuring responsive operations with zero delay. Supporting Pulse Repetition Frequencies (PRF) up to 30kHz, the P5 enables rapid scanning and seamless real-time data collection when paired with industrial encoders. Experience rapid focal law angle switching and instant depth scale adjustments in the field.
- ✔ High-speed real-time data processing without frame drops
- ✔ Dynamic PRF range adjusting up to 30kHz
- ✔ Immediate rendering of Sectorial and Linear scans
Superior Axial Resolution & TFM / FMC
Equipped with advanced beamforming algorithms, the P5 produces visible differences in beam focusing, enabling technicians to clearly distinguish between closely adjacent defects. For cutting-edge inspections, it supports Total Focusing Method (TFM) and Full Matrix Capture (FMC), allowing raw FMC data export to support research institutions and corporate partner R&D.
- ✔ Excellent axial resolution for separating micro-defects
- ✔ Supports raw TFM/FMC data export via proprietary API
- ✔ Highly intuitive color-coded C-scan corrosion thickness mapping
Ethernet-Based Remote Control Connection

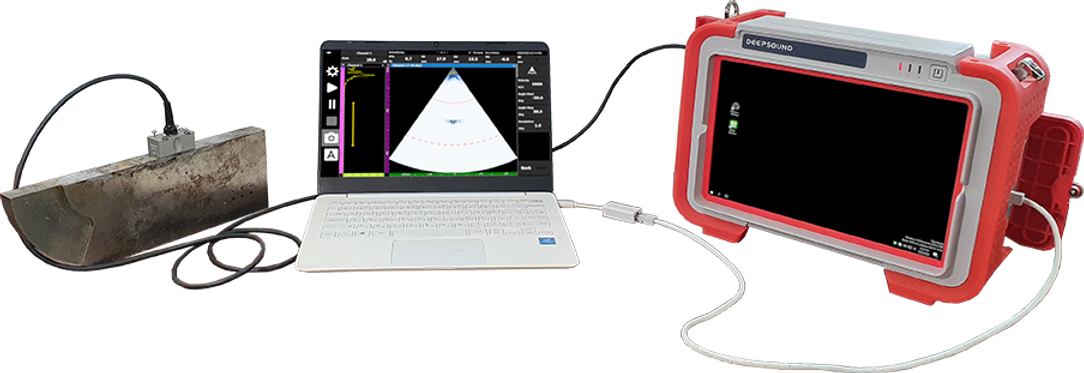

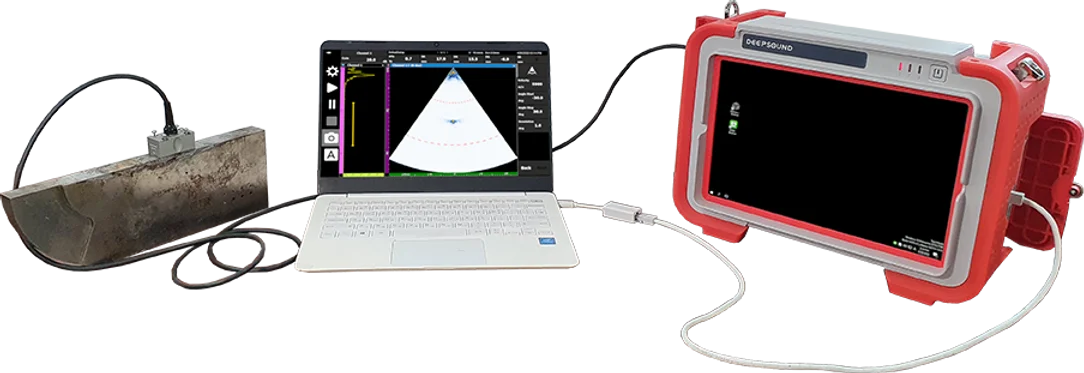

The DSPAUT P5 supports a Remote Connection feature via Gigabit Ethernet, allowing engineers to run the DSVision acquisition suite directly on a laboratory desktop or laptop. This feature is ideal for remote monitoring in hazardous testing areas, or when performing CPU-heavy analyses that demand higher performance from a dedicated PC workstation.
- ✔ Gigabit Ethernet LAN connection support
- ✔ Perfect for hazardous field setups or clean laboratory stations
Advanced Real-Time Diagnostic Visualizations
The DSPAUT system offers comprehensive visualization modes for professional technicians, delivering high-density data representation with high-contrast UI tailored for field use.
Thickness & Corrosion Mapping View
Real-time C-scan thickness mapping interface. The screen displays a color-coded C-scan topographical layout (demonstrated by the mapped "DSPAUT" test piece) combined with active A-scan and B-scan views to detect precise material wall thinning and corrosion.
Multi-Group PAUT + TOFD Simultaneous View
Advanced configuration allowing operators to view dual sectorial scans (S-scan) at differing focal laws side-by-side with an active TOFD (Time-of-Flight Diffraction) B-scan for dual-channel precision.
Comprehensive Physical Interface Map
The DSPAUT P5 is built to coordinate with multiple probe types and encoders. It features two optional probe port configs (TC-ZIF or IPEX) and various I/O ports.

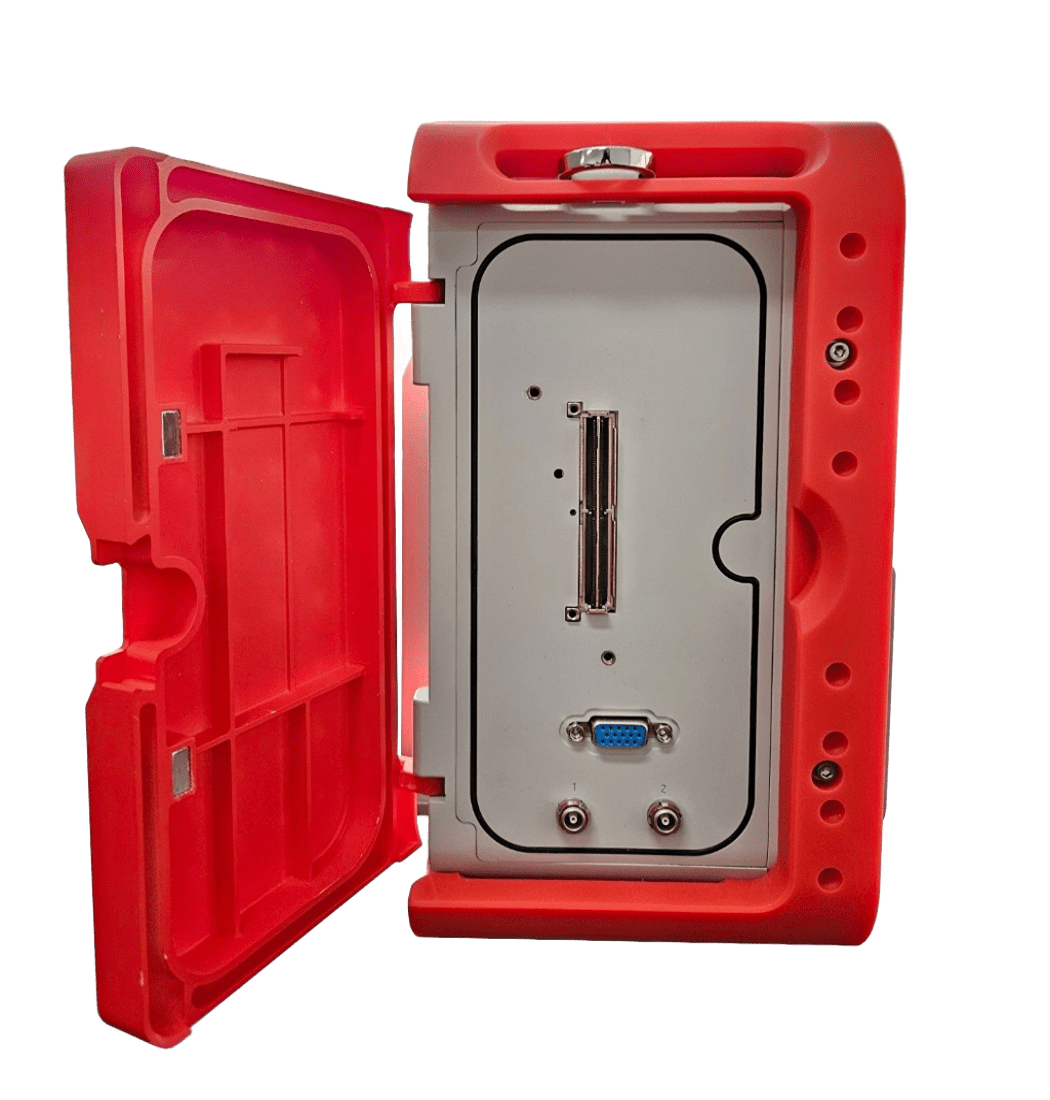

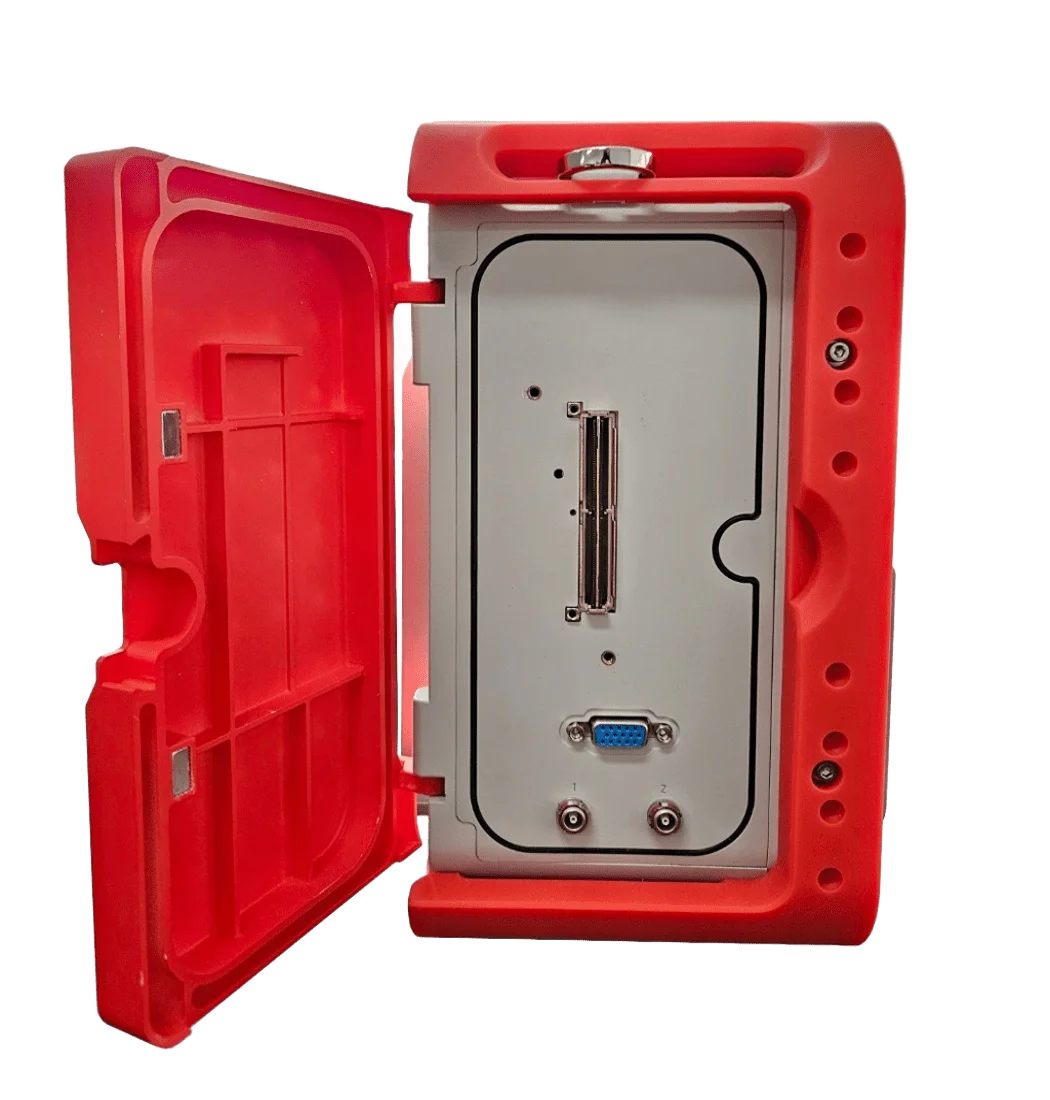

Left Side Connections (Sensor & Encoder)

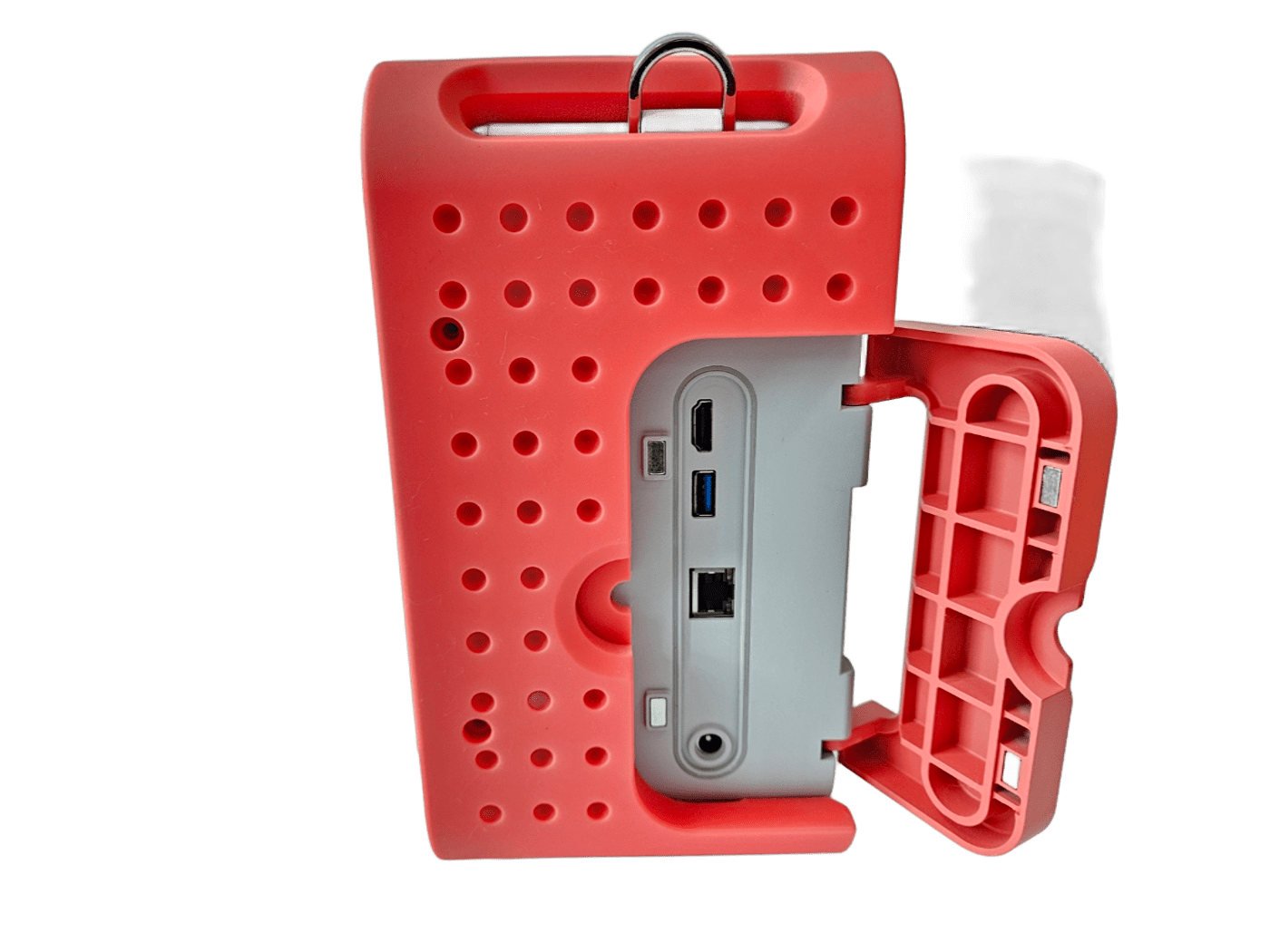

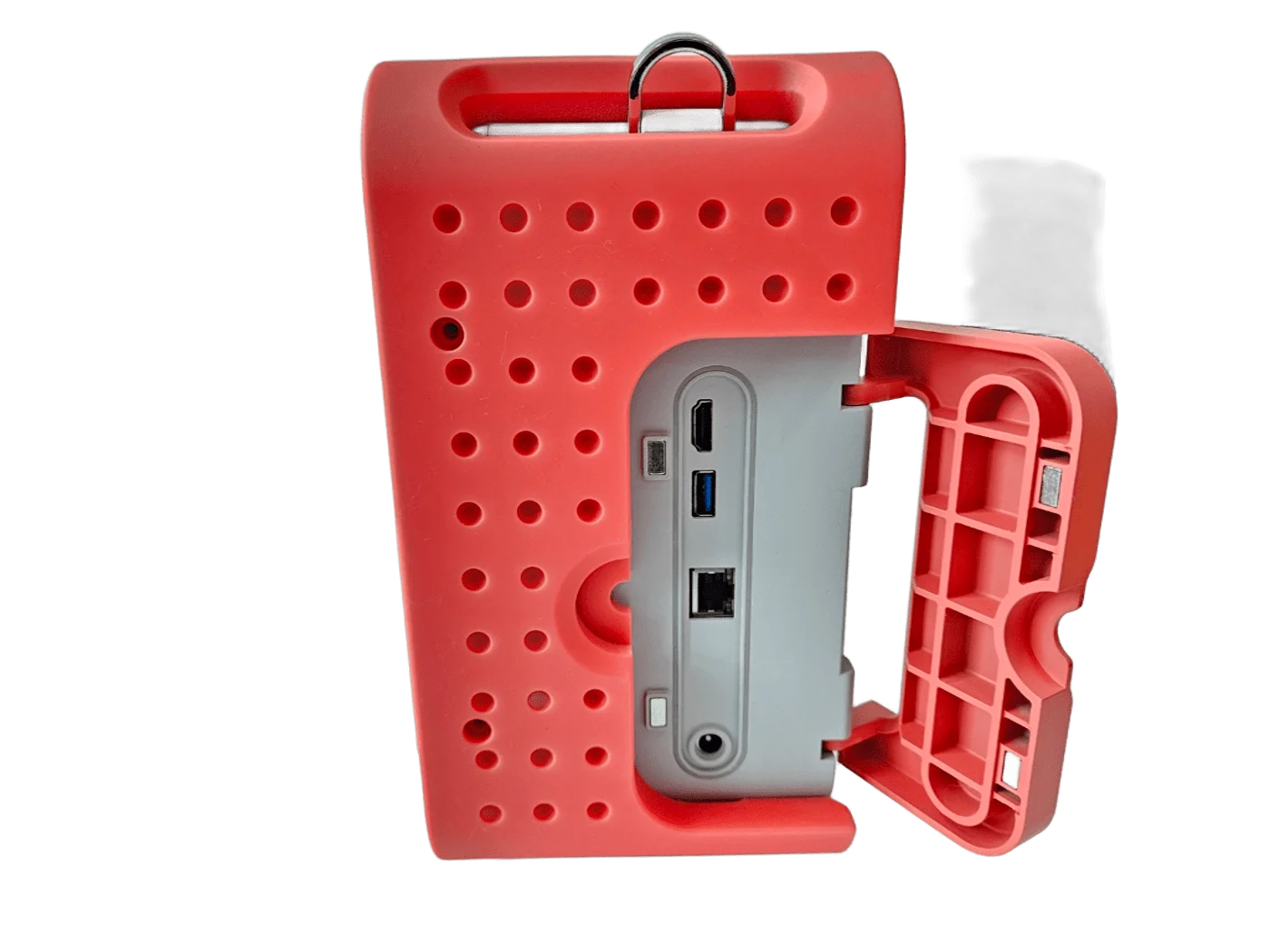

Right Side Connections (Standard I/O & Power)
Key NDT Inspection Applications
The DSPAUT P5 is built to deliver precision and reliability across critical industrial sectors, ensuring safety and compliance under the most demanding testing environments.
Power Generation & Piping
High-resolution weld inspection in high-temperature pipelines, monitoring stress corrosion cracking (SCC), and thermal fatigue.
Shipbuilding & Offshore
Comprehensive testing of thick butt-weld joints, hull structures, and critical structural connections in harsh offshore yards.
Petrochemical & Storage
Precise remaining wall-thickness measurements and C-scan corrosion mapping on pressure vessels, refinery columns, and storage tanks.
Aerospace & Composites
Detailed inspection of carbon fiber reinforced polymers (CFRP) and honeycomb panels to identify micro-voids and delaminations.
Technical Specifications
| Specification Category | DSPAUT P5 Values |
|---|---|
| General & Mechanical | |
| Dimensions (W x H x D) | 340 x 257 x 147 mm |
| Weight | 5.9 Kg (including 3 batteries) |
| Display | 12.1" Widescreen [1280 x 800], Resistive Touchscreen |
| Power & Battery | 12V 5A; 3x Li-ion 48Wh hot-swappable batteries (Up to 4 hours) |
| Acoustic & Configuration | |
| PAUT Configuration | 32:128PR channels |
| Effective Digitizer | 100 MHz |
| Max PRF | Up to 30 kHz |
| Pulser Voltage / Width | 25V ~ 160V (5V step); Bipolar Pulse; Width: 50ns ~ 2,000ns |
| Receiver Gain Range | 0 dB ~ 90 dB |
| Receiver Bandwidth | 0.5 MHz ~ 20 MHz (16-bit sampling resolution) |
| Scan Types | Linear, Sectorial, Conventional UT, TOFD, TFM/FMC (optional) |
| Connectivity & Environmental | |
| Probe Ports | MiniDLP Ipex 160p x1 (with 2x Lemo 00) |
| Encoder Input | 3-axis Encoder Input (D-sub 15pin 3row) |
| Data Interfaces | Gigabit Ethernet x1, HDMI x1, USB 2.0 x1 |
| Environmental Ranges | Operating: 0 ~ 60℃; Storage: -20 ~ 80℃ |
