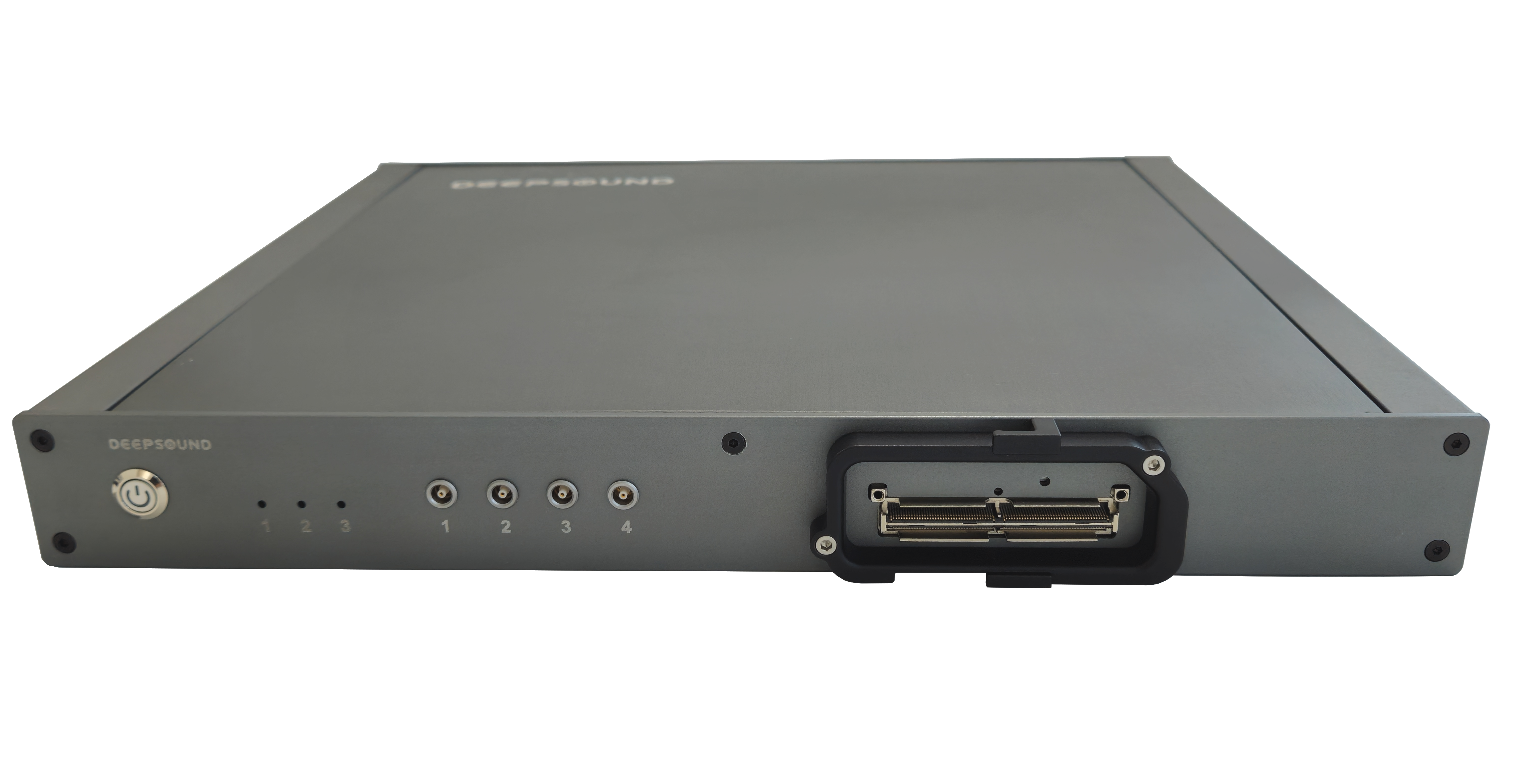

DSPAUT R5
High-Performance OEM PAUT Engine
The DSPAUT R5 is a cutting-edge 19-inch rack-mountable Phased Array Ultrasonic Testing (PAUT) system specifically designed for automated manufacturing lines and advanced R&D environments. The R5 provides the raw processing power, multi-board scaling, and integration flexibility required for high-volume quality control and experimental research.

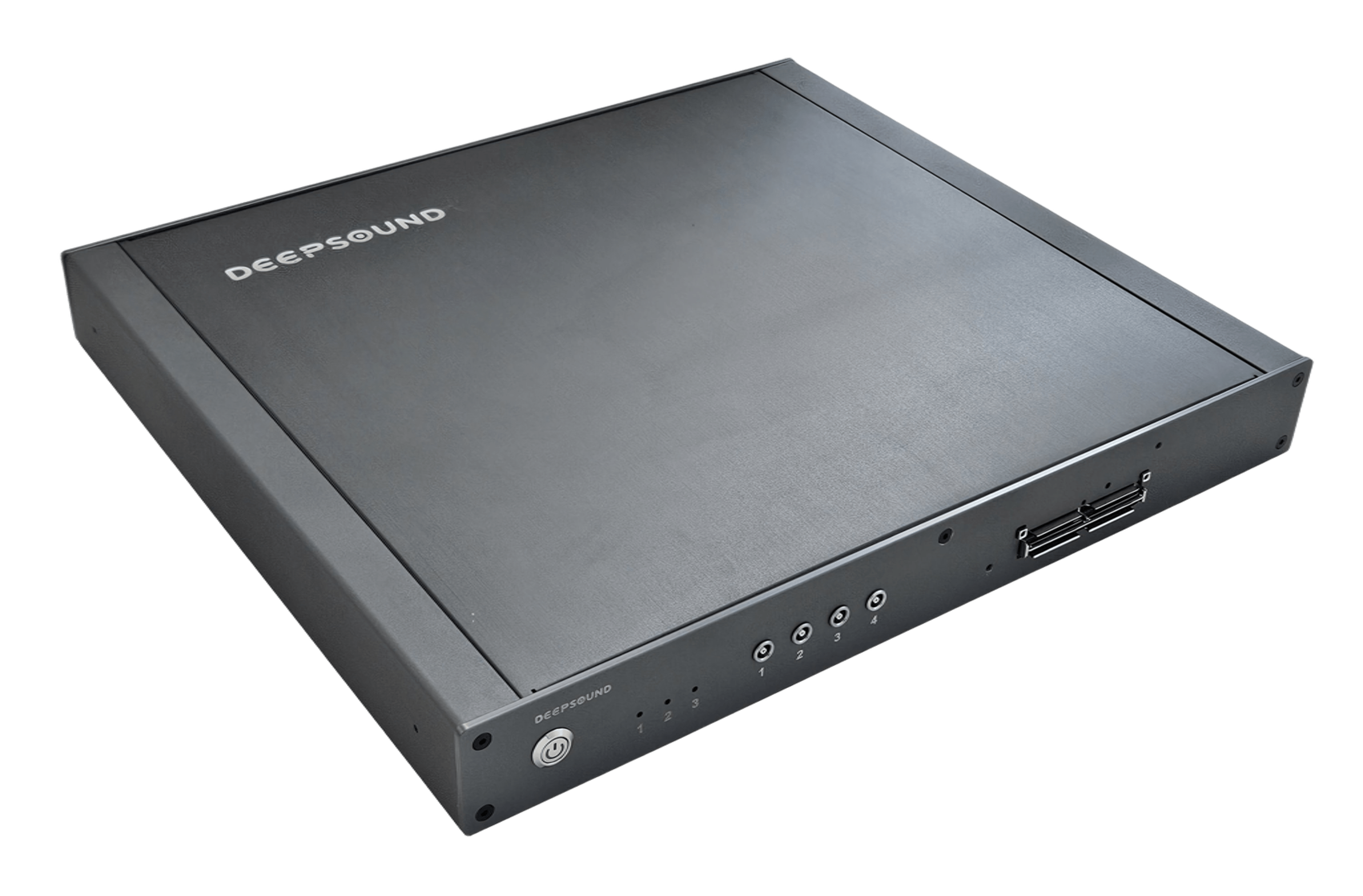

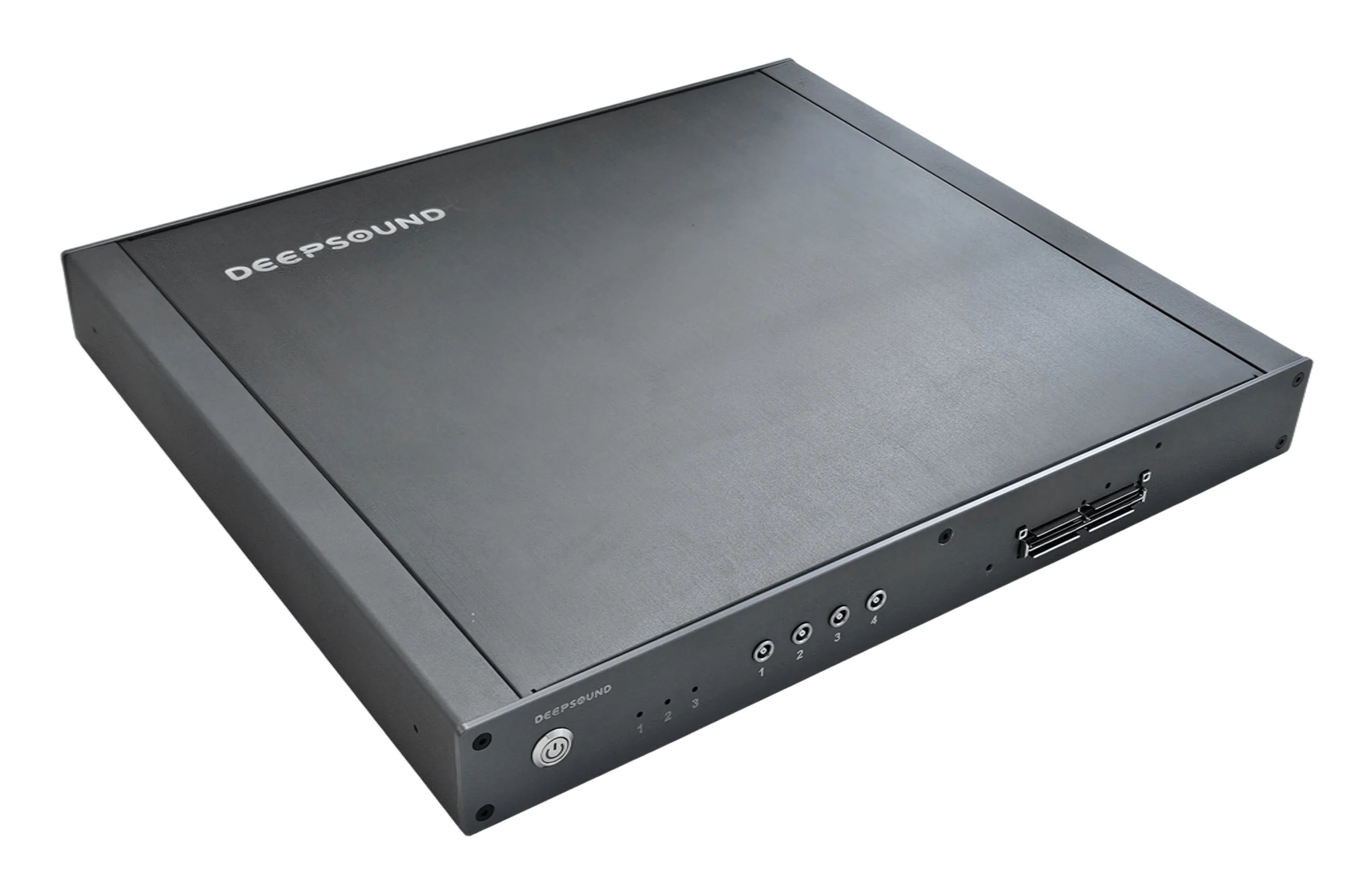

Industrial Scalability: 19" Rack-Mount Design
Experience seamless integration into your existing factory infrastructure. The R5 is optimized for industrial rack systems, allowing for stable, multi-channel configurations. It is equipped with a built-in standalone PC, so there's no need to connect external hardware control units.
- ✔ 19-Inch Rack Compatibility: Standard rack-mount form factor for organized, secure, and compact multi-unit operation.
- ✔ Standalone Operation: Built-in PC inside. Simply connect a monitor via HDMI and run inspection programs directly.
- ✔ Multi-Board Expansion: Stack multiple units to accommodate high-volume factory automated scanner lines.
Advanced Multi-Channel Processing & Flexible C# DSK Integration
The DSPAUT R5 features a high-performance hardware architecture designed for precise multi-channel ultrasonic signal computation. It seamlessly processes dense data streams from 32:128PR Phased Array and 4-channel Conventional UT configurations. For quick integration, it supports a dedicated C# DSK API/SDK to program custom automation UI screens and hardware control algorithms.
- ✔ 32:128PR High-Fidelity Signal: Handles linear, sectoral, and single conventional UT probe inputs with zero data loss.
- ✔ C#-Dedicated DSK SDK: Features optimized .NET API classes for rapid development of control logic and customized inspection dashboards.
- ✔ Real-Time Data Streaming: Streams acoustic raw data over a 1Gbps Ethernet connection directly to your remote PC without latency.
using System; using DEEPSOUND; // Initialize R5 OEM Board via DSK DSK.InitDsk(); bool isReady = DSK.InitDevice(); if (isReady) { // Configure hardware parameters DSK.SetGain(45.0); DSK.SetPulseVoltage(120); // Apply parameters to hardware DSK.UploadAllParameters(); }
Target Industrial Applications
The DSPAUT R5 Phased Array engine is optimized for high-volume automated testing setups and custom scientific R&D platforms.
In-Line Automated QA
Seamlessly integrates with robotic arms and factory conveyor setups for high-speed, 24/7 automated inspection of automotive, steel, and tube parts.
Aerospace & Composites
Supports automated gantry and water-immersion systems for high-resolution ultrasonic imaging (C-scan) of critical composite materials and wing components.
NDT R&D & Custom Rigs
Provides an open DSK SDK interface for university researchers and system integrators to write custom scripts and test new beamforming algorithms.
Railway & Infrastructure
Powers high-speed rolling search units for automatic detection of internal cracks and defects in railway wheelsets, axles, and tracks.
DSPAUT R5 Interface & Ports Map
The DSPAUT R5 layout integrates high-frequency sensor connections and a phased array probe port on the front panel, with power, display, and high-speed communication interfaces on the rear panel.

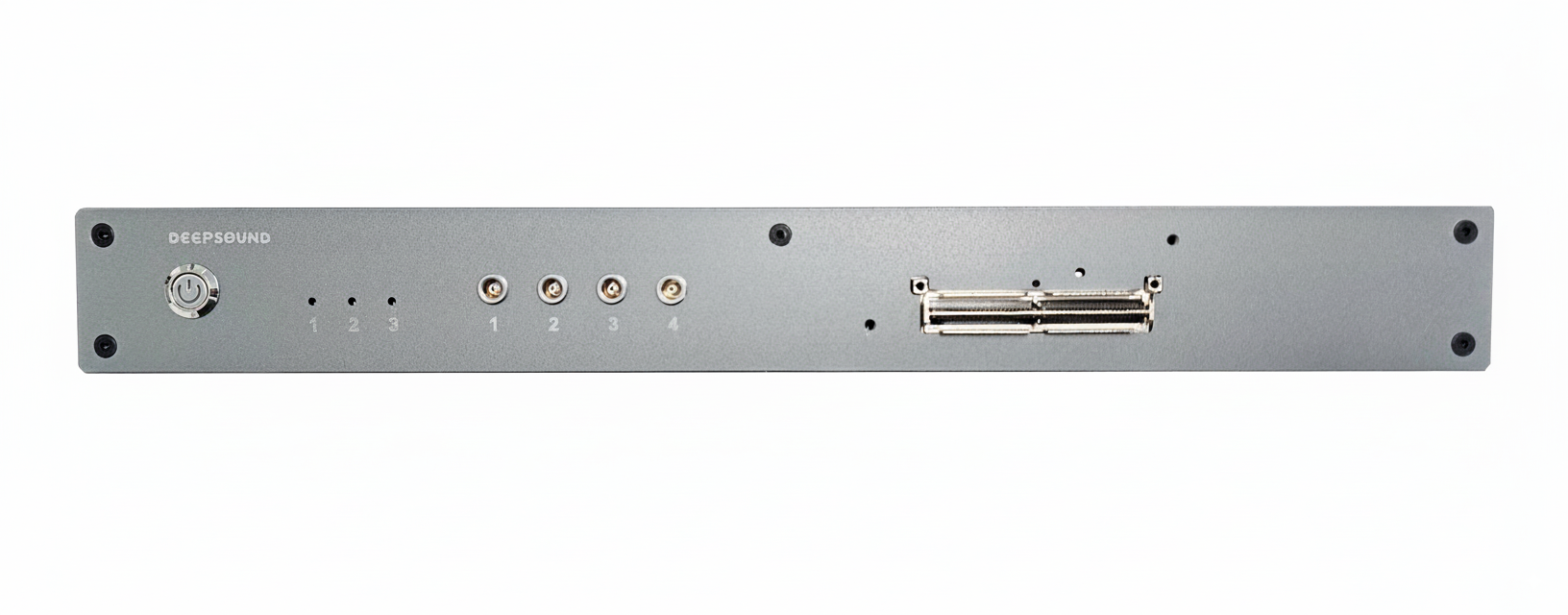

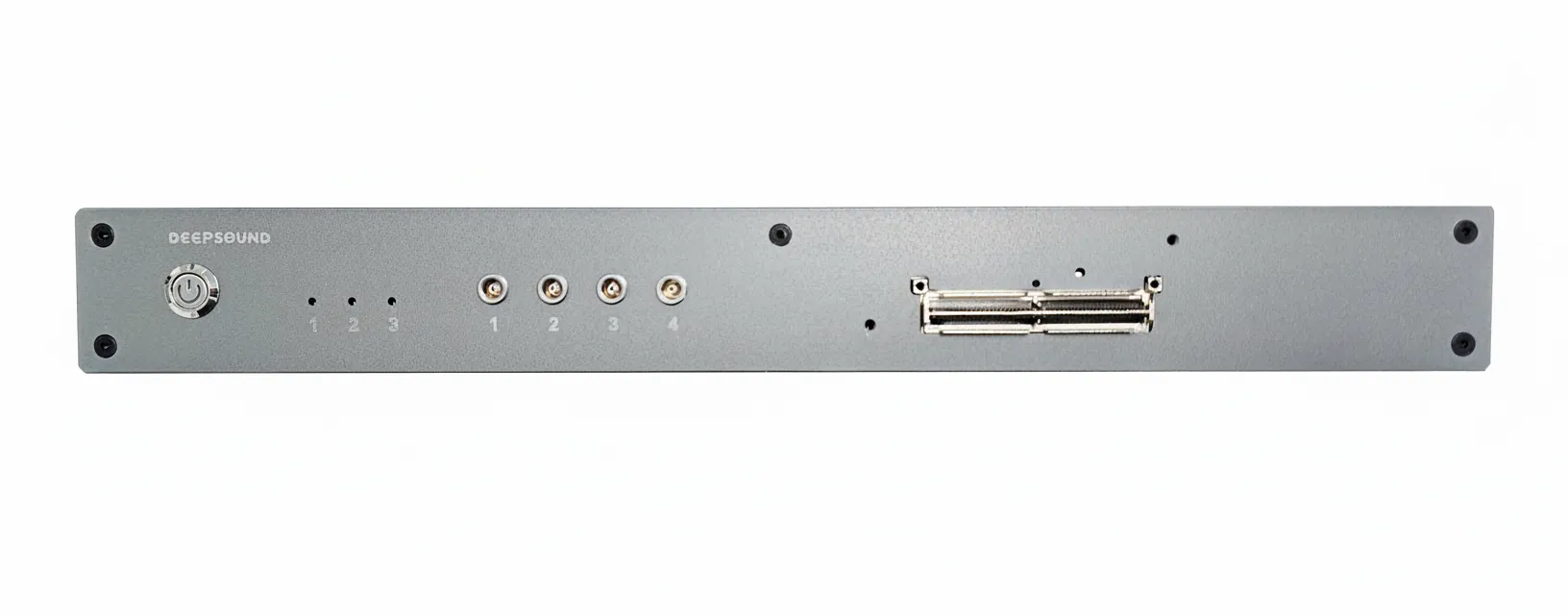

Front Panel (Probes & Control)

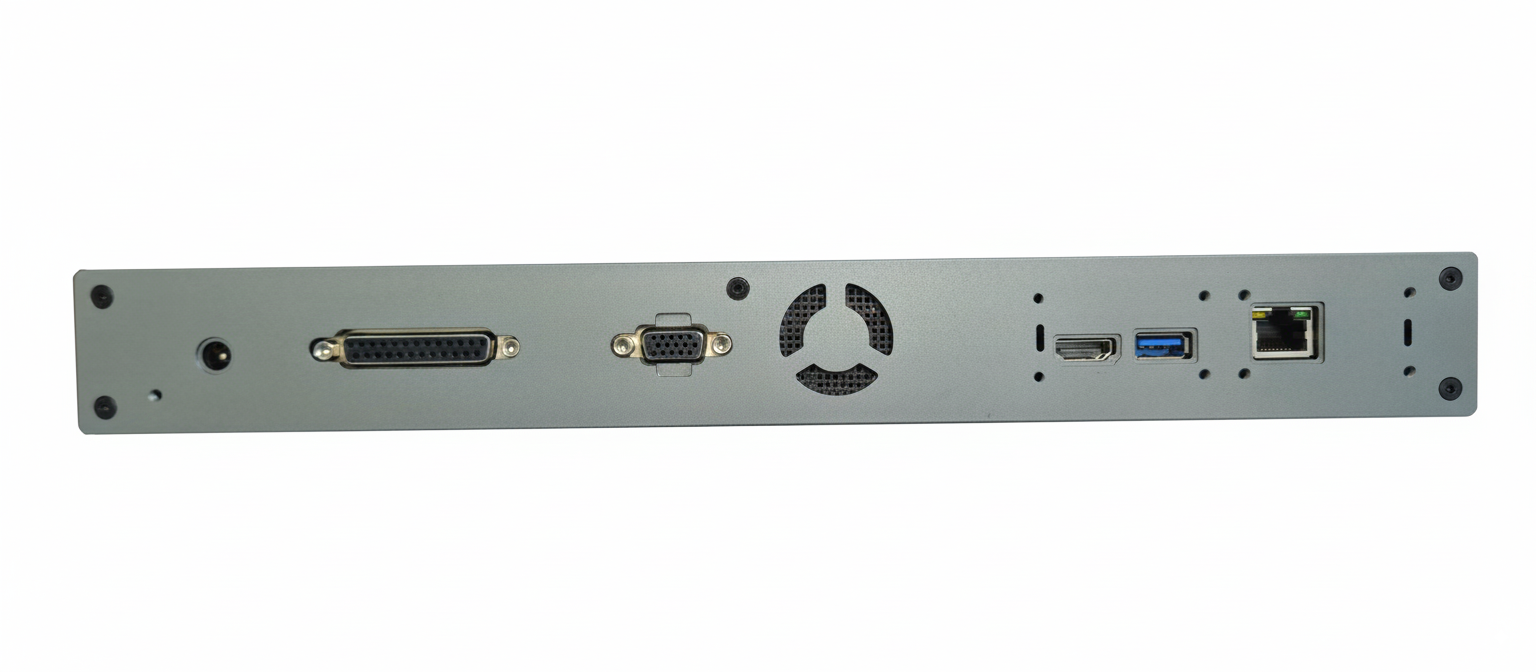

Rear Panel (I/O, Video & Communication)
Technical Specifications
| Specification Category | DSPAUT R5 Values |
|---|---|
| General & Mechanical | |
| Form Factor | 19" standard rack mount multi-board design |
| PC System | Built-in Standalone Industrial PC |
| Operating System | Windows Embedded / Linux support |
| Acoustic & Configuration | |
| PAUT Configuration | 32:128PR channels |
| Conventional UT | 4 Channels (LEMO 00 connectors) |
| Pulser Type | Bipolar Pulse (25V ~ 190V) |
| Effective Digitizer | 100 MHz |
| Max PRF | Up to 30,000 Hz (30 kHz) |
| Sample Resolution | 16 bit |
| Software Support | DSK (SDK APIs), Custom UI integrations |
| Connectivity | |
| I/O Ports | Fast Gigabit LAN, HDMI out, USB 3.0, 3-Axis Encoder support |
