DSPAUT T3
Class-Leading Lightweight Precision

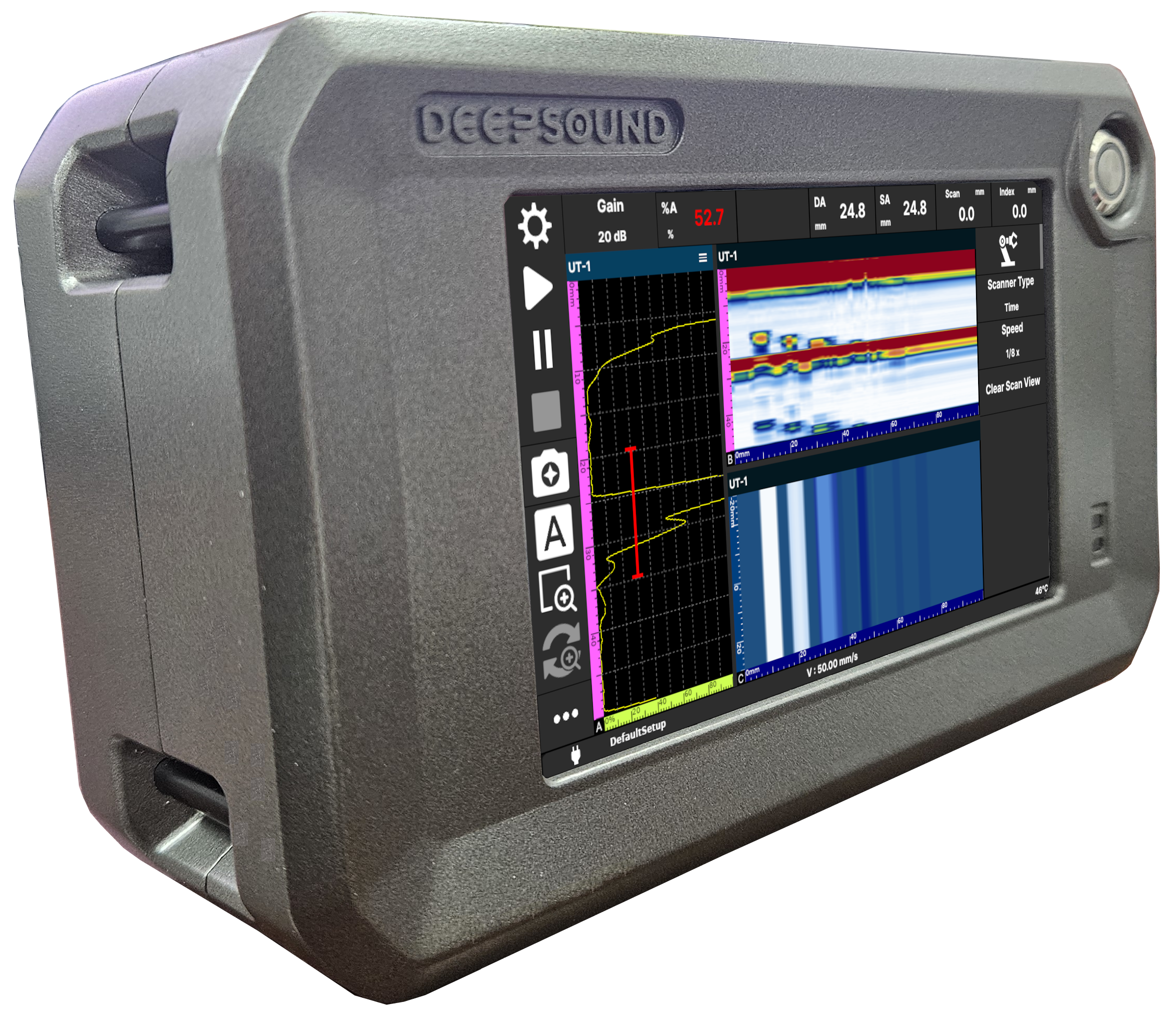

The DSPAUT T3 is a class-leading Conventional Ultrasonic Testing (UT) scanner that shatters the weight barriers of industrial NDT gear. Designed by SEONGSANLAB, the T3 combines an astonishing 0.9kg ultra-lightweight body with the precision and encoder support required for mission-critical TOFD and UT assessments.

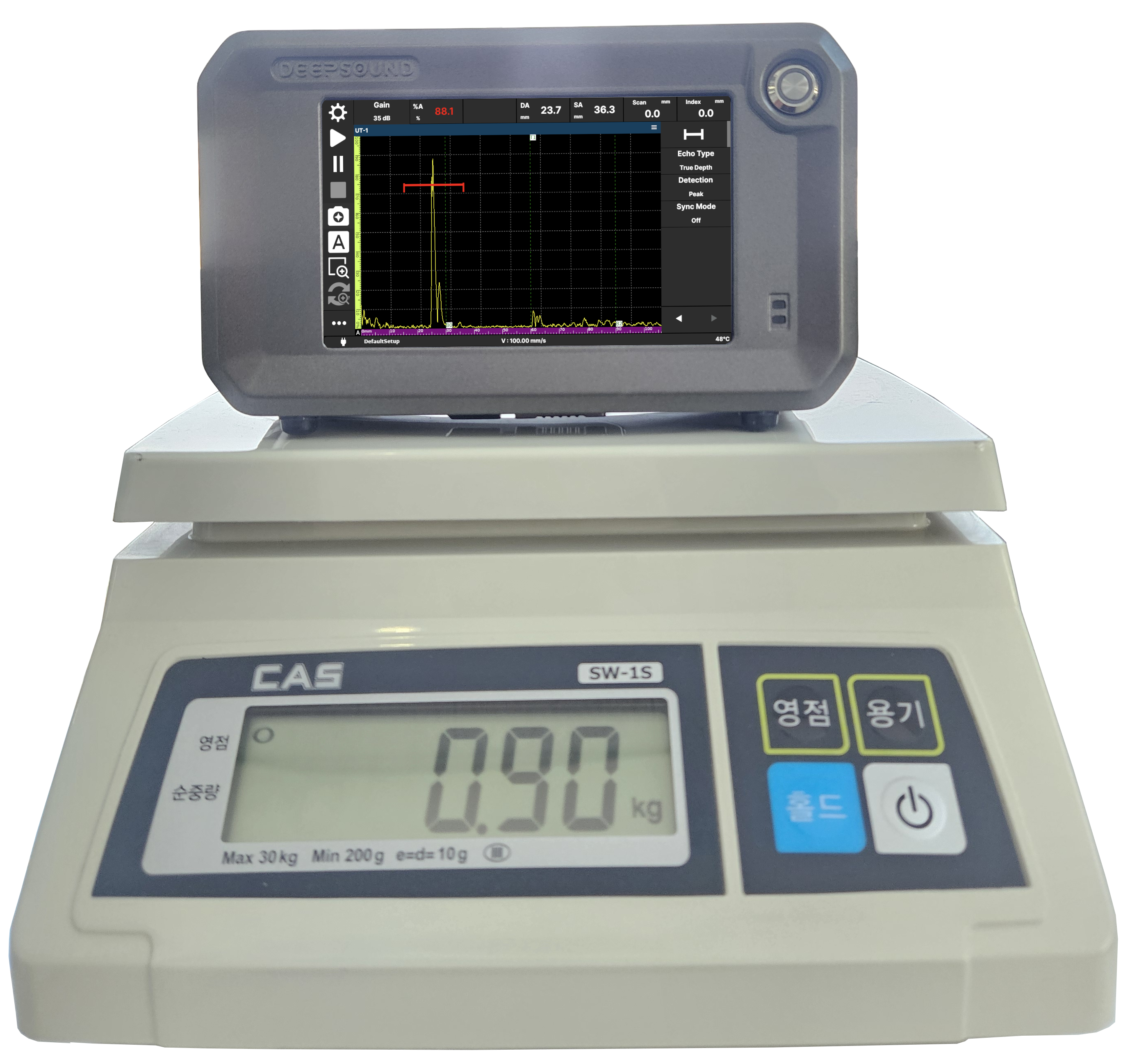

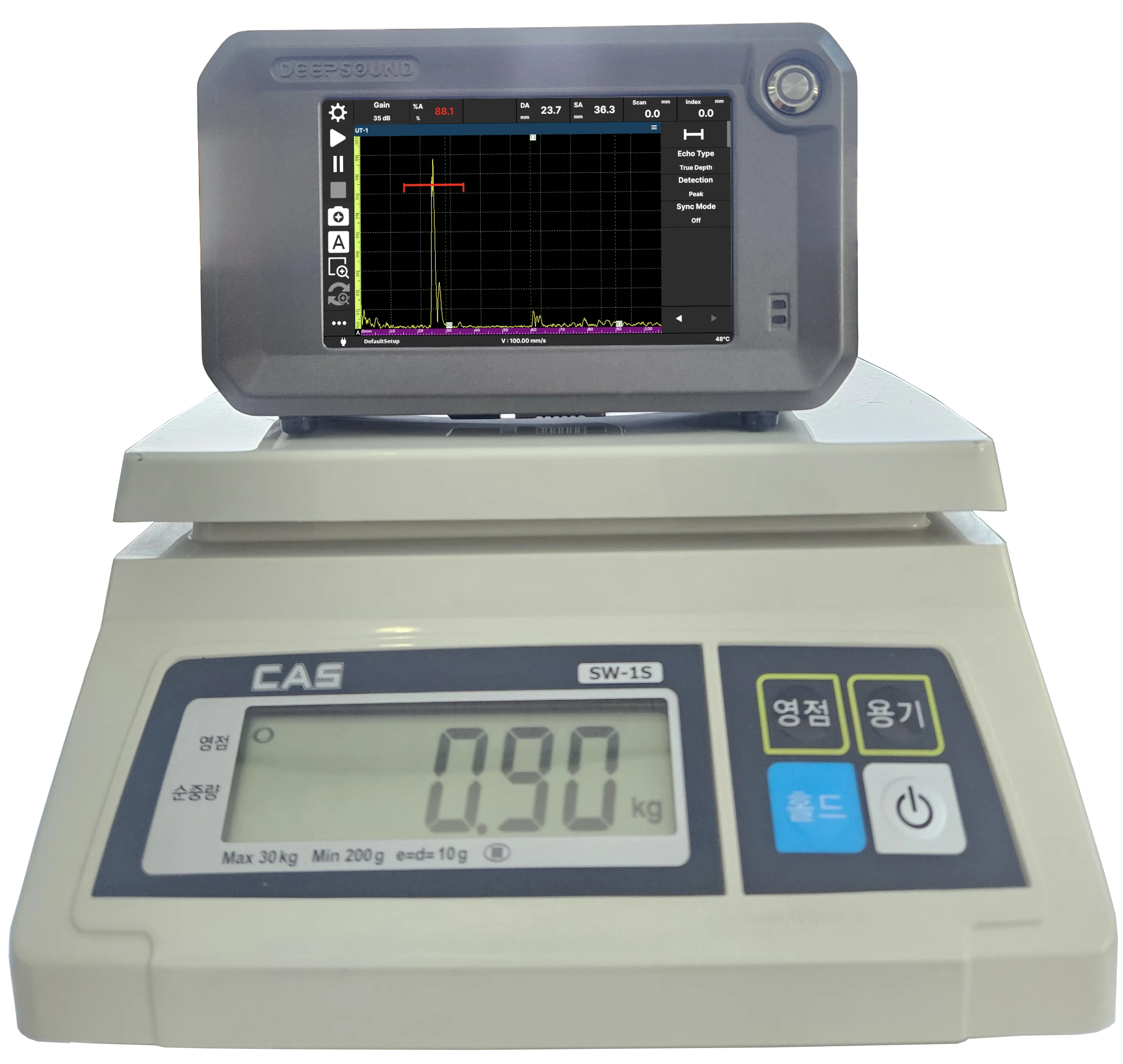

Astonishing 0.9kg: The Lightest in its Class
Experience fatigue-free inspection sessions. Even with the battery installed, the DSPAUT T3 remains under 0.9kg, allowing for stable, one-handed operation during long shifts or in narrow, difficult-to-access locations. It is designed to maximize field agility without sacrificing performance.
- ✔ Featherweight Design: At just 0.9kg, the T3 reduces physical strain during inspections.
- ✔ 7" High-Resolution Display: A vibrant 1024×600 capacitive touchscreen provides crystal-clear A-scan data.
- ✔ Extended Endurance: High-capacity 47.52Wh smart battery supports up to 5 hours of continuous operation.
Professional UT & Specialized TOFD Imaging
The DSPAUT T3 is optimized for core NDT inspection, featuring specialized TOFD tools and integrated encoder support for real-time high-fidelity recording. It ensures excellent thickness measurements and flaw evaluation.

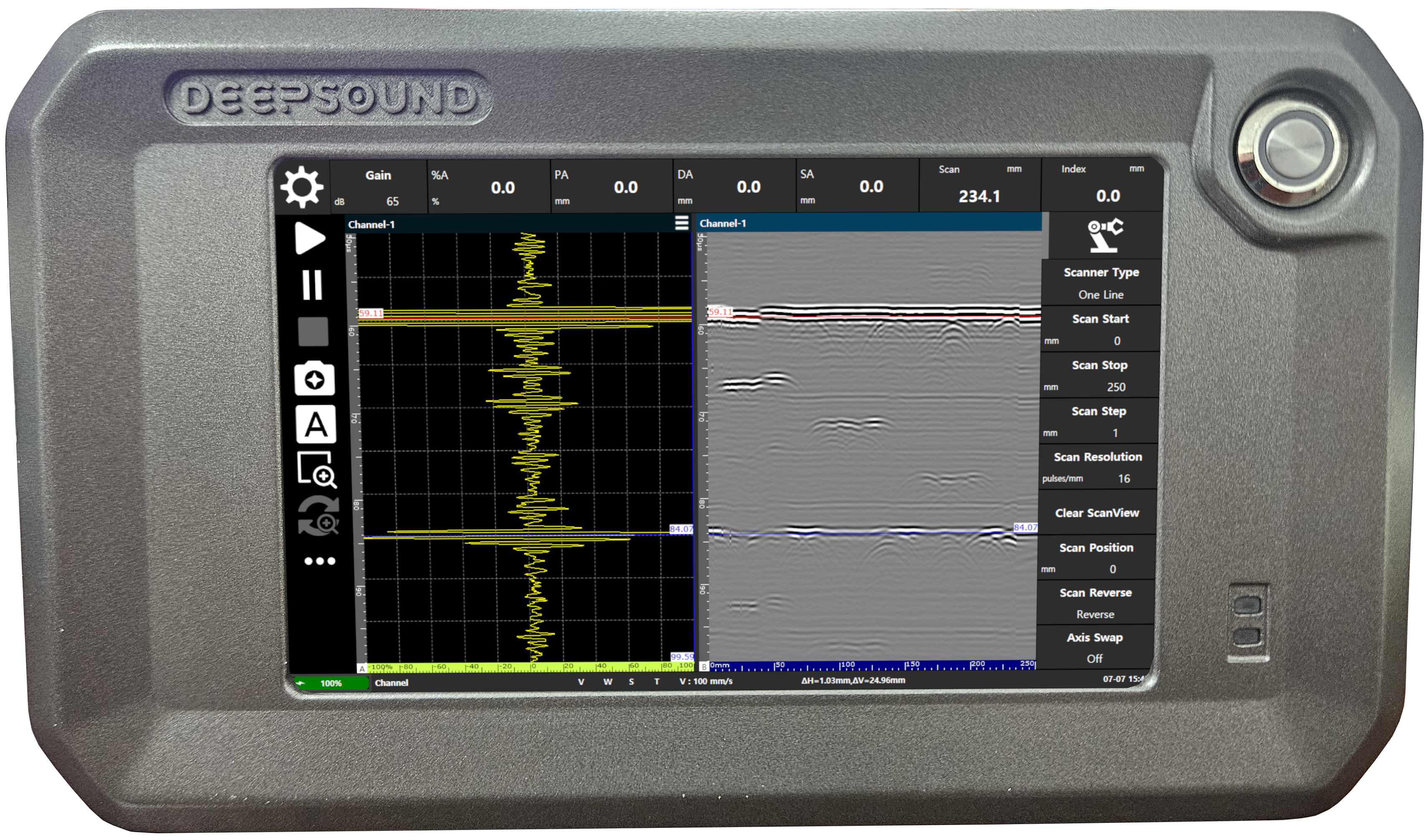

- ✔ Real-Time TOFD: Capture and record reliable TOFD images on the fly via the built-in encoder port.
- ✔ High-Speed Signals: 3,000Hz PRF and 16-bit resolution deliver exceptionally sharp signals.
- ✔ Intuitive Mapping: Gate-triggered B-Scan and C-Scan transformations allow visual defect analysis.
- ✔ Full Calibration: Standard integrated tools for Velocity, Wedge Delay, DAC, and Encoder.
DSPAUT T3 Interface & Ports Map
The DSPAUT T3 layout incorporates dedicated ultrasonic sensor ports on the top edge and industrial communication connections on the right panel.

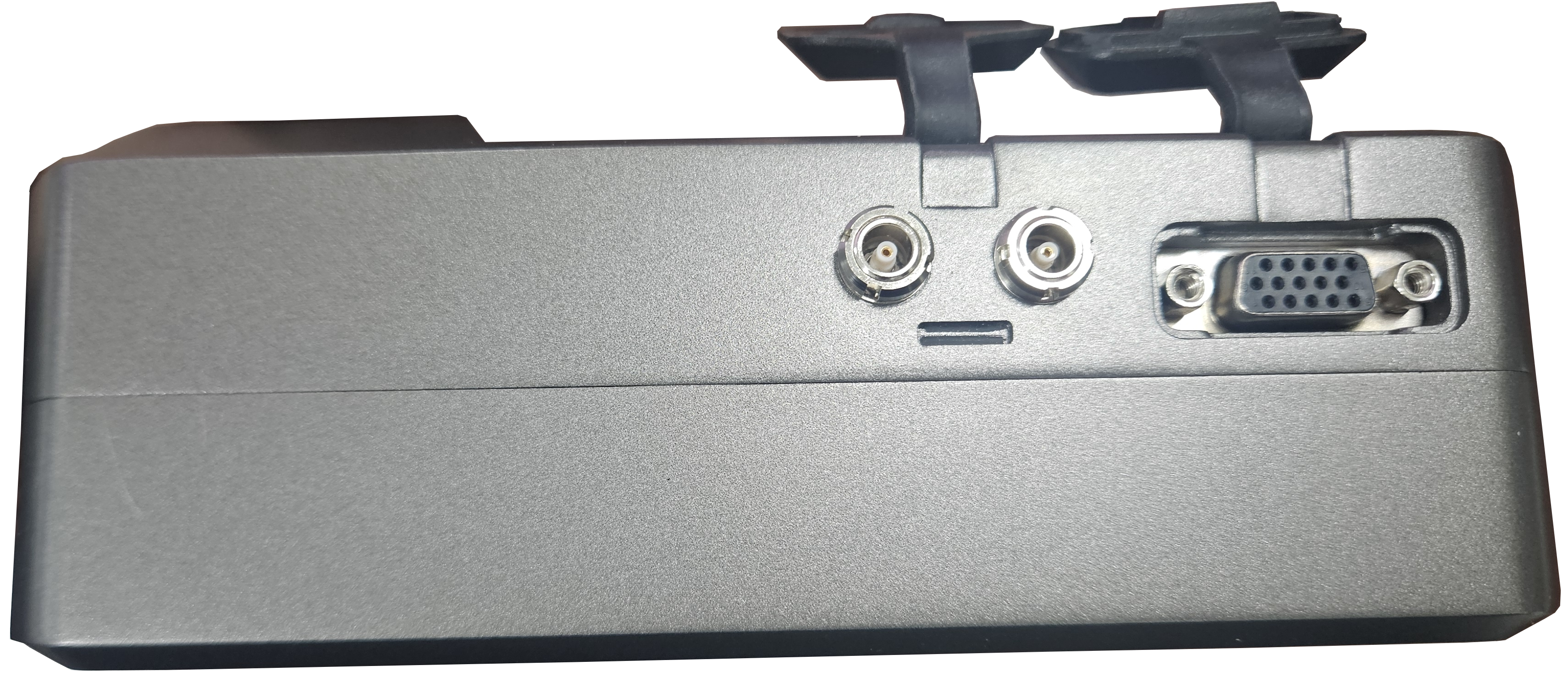

Top Connector Panel (Probe & Encoder)

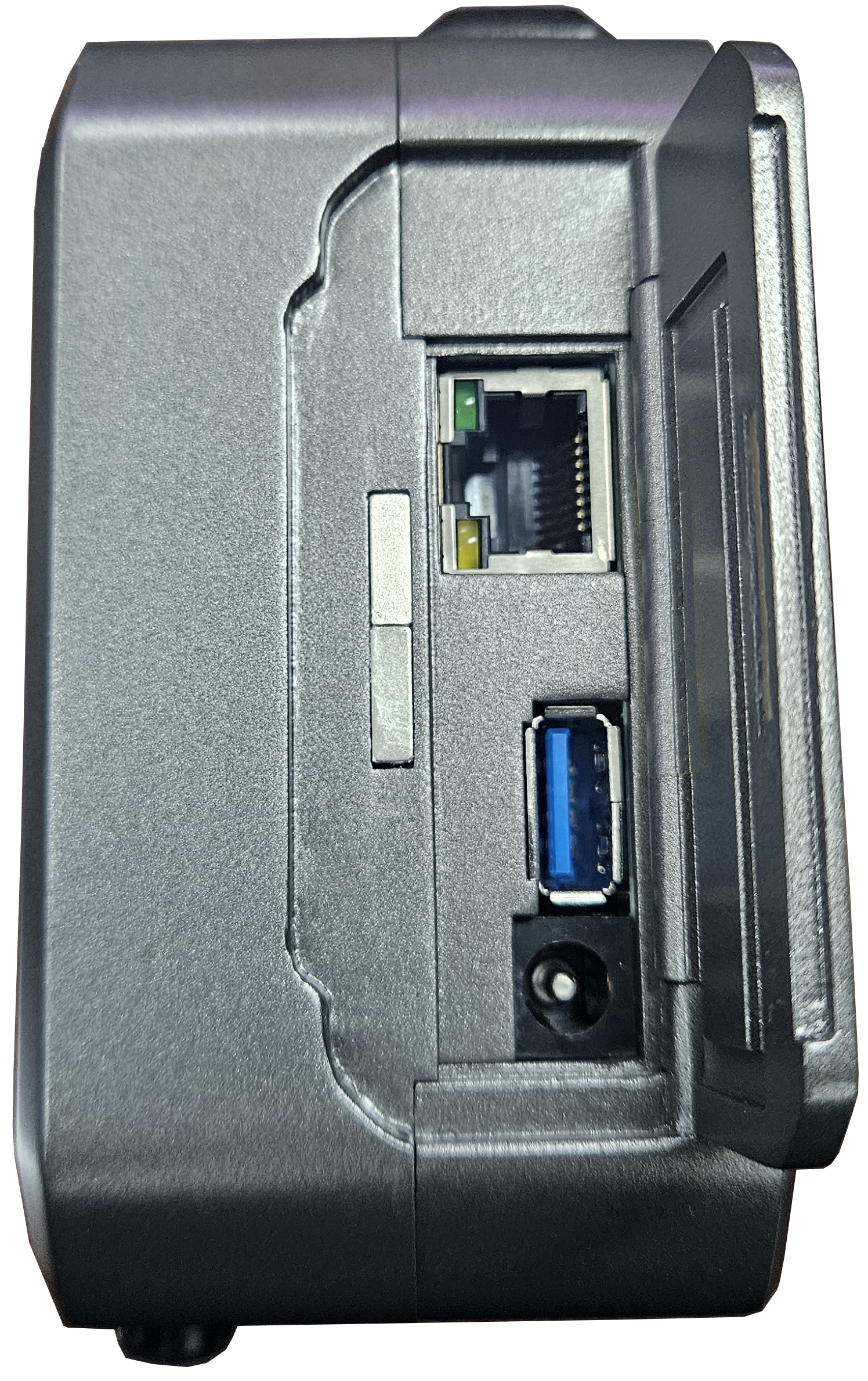

Right Panel Connections (I/O & Power)
Technical Specifications
| Specification Category | DSPAUT T3 Values |
|---|---|
| General & Mechanical | |
| Classification | Portable Conventional UT (휴대용 초음파 탐상기) |
| Weight | 0.9 kg (Including Battery) |
| Display | 7" Wide Capacitive Touchscreen (1024 x 600) |
| Battery Life | Up to 5 Hours (47.52Wh Smart Battery) |
| Acoustic & Configuration | |
| Max PRF | 3,000 Hz (3 kHz) |
| Sample Resolution | 16 bit |
| Pulser Type | Bipolar Pulse (25V ~ 160V) |
| Scan Support | Conventional UT, TOFD (including B-Scan, C-Scan) |
| Connectivity | |
| I/O Interfaces | 2-Axis Encoder, Gigabit LAN, USB 3.0 |
Request a Quote for DSPAUT T3
Submit your contact information and customized testing configurations, and our technical sales engineers will contact you with a dedicated quote.
